Plastic injection moulding is a widely used manufacturing process that involves injecting molten plastic into a mould cavity to create a variety of plastic parts. The process is favoured for its ability to produce high volumes of parts with excellent precision and repeatability. One critical aspect of achieving high-quality parts in a multi-cavity mould is ensuring that all cavities are balanced. This blog delves into the importance of balancing cavities in plastic injection moulding tools, the methods used to achieve balance, and the challenges faced in this manufacturing process.

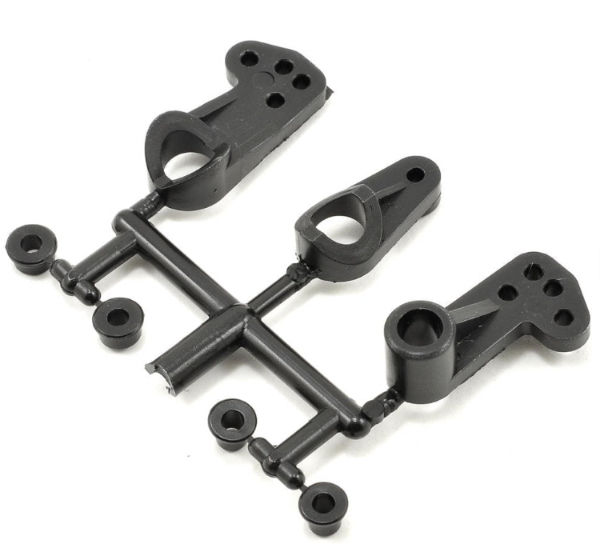

Balancing of cavities is significantly important for family tooling.
Family tooling is where two or more different parts, each with a different shot volume, are moulded in the same tool in the same shot.
Understanding Cavity Balancing
Cavity balancing refers to the process of ensuring that the molten plastic fills each cavity in a multi-cavity mould uniformly and simultaneously. In an unbalanced mould, some cavities may fill faster than others, leading to a host of problems such as dimensional inconsistencies, variations in part weight, and cosmetic defects. These issues can result in higher reject rates, increased material waste, and ultimately, higher production costs.
Importance of Cavity Balancing
Consistent Part Quality: Uniform filling ensures that each part produced in a multi-cavity mould meets the same quality standards. This consistency is crucial for applications where precision and reliability are paramount, such as in the medical and automotive industries.
Reduced Cycle Time: Balanced cavities can lead to more efficient cooling and solidification, thereby reducing cycle times and increasing overall production efficiency.
Material Efficiency: Properly balanced moulds minimize material waste, as there is less likelihood of producing defective parts that need to be scrapped or reworked.
Lower Operational Costs: By reducing the rate of defects and optimizing cycle times, balanced cavities contribute to lower operational costs, making the manufacturing process more cost-effective.
Methods for Achieving Cavity Balance
There are several methods used to achieve cavity balance in injection moulding, each with its own set of advantages and challenges.
1. Flow Simulation and Analysis
Modern injection moulding relies heavily on Cad modelling to design then to FEA mould slow analysis software to simulate the flow of molten plastic within the mould. Software such as Moldflow and SolidWorks Plastics can predict potential imbalances and suggest modifications to the mould design. These simulations take into account factors such as melt flow rate, pressure, temperature, and viscosity.
Advantages:
Allows for virtual testing and optimization before physical mould creation.
Reduces the need for costly trial-and-error adjustments.
Challenges:
Requires specialised software and expertise.
Simulation results may not always perfectly match real-world conditions.
2. Runner Balancing
Runners are channels that guide the molten plastic from the injection nozzle to the mould cavities. Balancing the runner system involves designing the runners so that each cavity receives the same amount of material at the same time. This can be achieved through various techniques:
Symmetrical Runner Design: Ensuring that the runners are symmetrically laid out so that the distance from the injection point to each cavity is identical.
Runner Cross-Section Adjustment: Modifying the cross-sectional area of the runners to control the flow rate and pressure drop for cavities of different part weight and part volume.
Advantages:
Can be implemented during the initial mould design.
Effective for achieving balance in simpler moulds.
Challenges:
Complex runner systems can be difficult to balance.
Changes in material properties or process conditions may still lead to imbalances.
3. Gate Design and Positioning
Gates are the entry points through which molten plastic enters the cavities. The size, shape, and location of gates play a crucial role in cavity balancing. Common gate designs include edge gates, pin gates, and submarine gates.
Advantages:
Fine-tuning gate design can significantly improve balance.
Allows for better control over the flow of material into each cavity.
Challenges:
Improper gate design can cause cosmetic defects or weaken the part.
May require multiple iterations to achieve optimal balance.
4. Use of Valve Gates
Valve gates are controlled mechanisms that open and close to allow the flow of plastic into the cavities. By precisely controlling the timing of these gates, manufacturers can ensure that each cavity fills simultaneously.
Advantages:
Provides precise control over the filling process.
Can be adjusted in real-time to compensate for variations in material or process conditions.
Challenges:
Adds complexity and cost to the mould.
Requires sophisticated control systems and maintenance.
Challenges in Achieving Cavity Balance
Despite the various methods available, achieving perfect cavity balance can be challenging due to several factors:
Material Variations: Different batches of plastic material may have varying flow characteristics, affecting the balance of the mould.
Process Conditions: Changes in temperature, pressure, and injection speed can impact the flow of plastic, leading to imbalances.
Mould Wear and Tear: Over time, moulds can wear out, causing deviations in the flow paths and affecting balance.
Complex Geometry: Moulds with complex geometries and multiple cavities can be particularly challenging to balance due to the intricate flow paths involved.
Balancing cavities in a plastic injection moulding tool is a critical aspect of ensuring high-quality, consistent, and cost-effective production. By leveraging flow simulation, runner balancing, gate design, and valve gates, manufacturers can achieve better cavity balance and mitigate the challenges associated with this process. As technology continues to advance, the tools and techniques for achieving cavity balance will become even more sophisticated, further enhancing the efficiency and reliability of plastic injection moulding.
In the competitive landscape of manufacturing, achieving cavity balance is not just a technical necessity but a strategic advantage that can lead to higher productivity, lower costs, and superior product quality. By investing in the right methods and technologies, manufacturers can stay ahead in the game and deliver exceptional products to their customers.
---
équipe design & consulting , with 20 years experience in design and manufacture of Medical grade moulded parts and product, including 5 years at the coal face as Operations Manager at a world class medical grade moulding facility; we are experts in Design for Manufacture (DFM).
Please reach out if you feel you need assistance with your part design for plastic injection moulding, from Design Coaching and Guidance to Full Service Design Consulting.
